Stainless Steel Solvent Ethanol Continuous Liquid Extraction Herbal Tincture Diacolation Tank

1 / 5

Stainless Steel Solvent Ethanol Continuous Liquid Extraction Herbal Tincture Diacolation Tank

Customization:	Available
After-sales Service:	Online Support/Visit Client's Plant Site

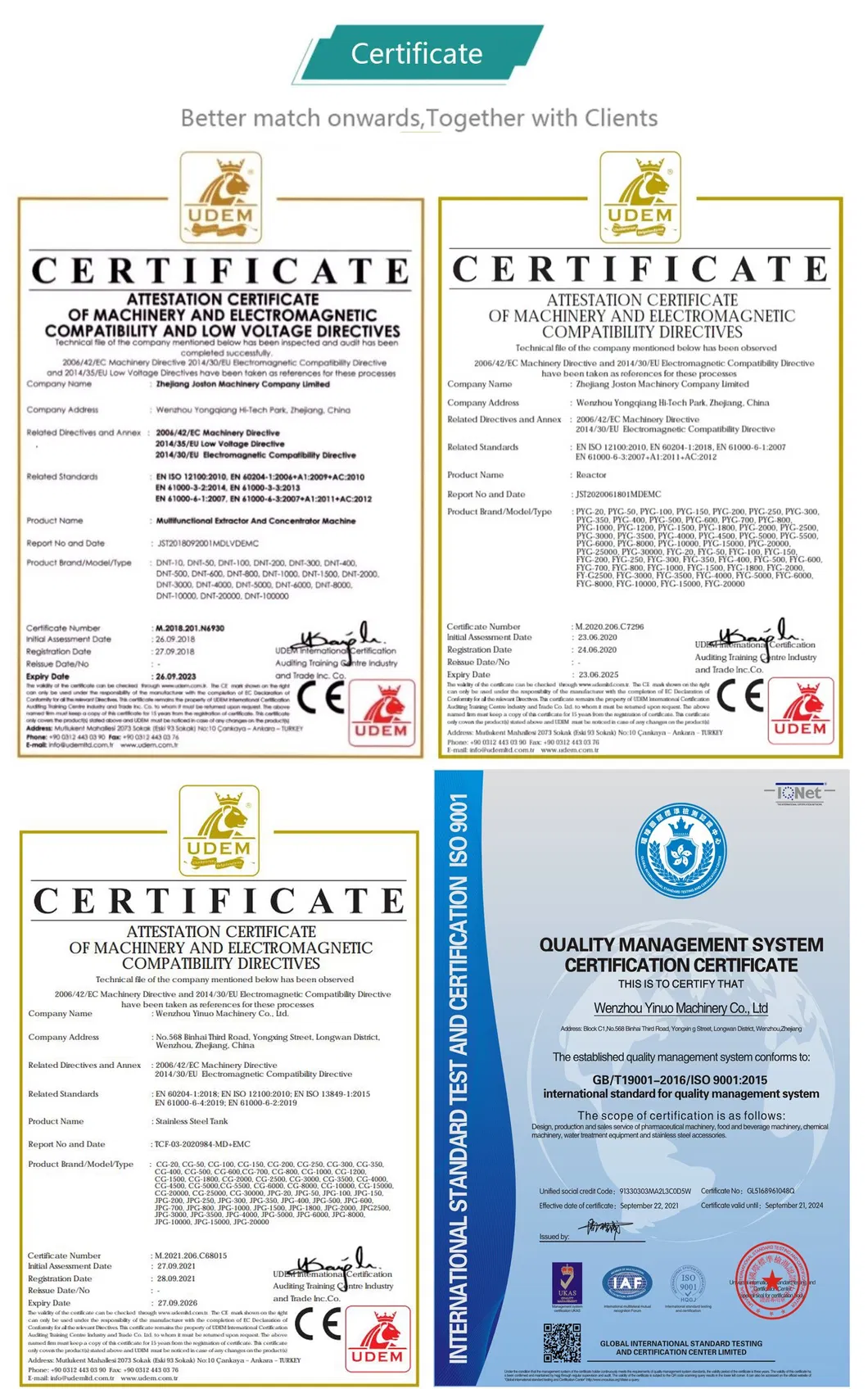

Certification:	CE, GMP, ISO

Send Inquiry

Product Description

Basic Specifications

Model NO.

TQD

Product Name

Diacolation Tank

Material

Stainless Steel 304/316L

Condition

New

Voltage

110V-575V, 50-60Hz

Warranty

2 Year

Function

Extracting Active Ingredients

Specification

100-10000L

Type

Extraction Equipment

Heating Model

Steam/Hot Oil/Electrical

★

Product Description

Tincture diacolation tank uses extraction equipment to extract active ingredients from herbal raw materials via solvents such as ethanol, methanol, or acetone.

What is a Tincture?
Tincture refers to the clear liquid preparation made by extracting or dissolving drug substances with specified concentrations of ethanol. It is easy to prepare and preserve, suitable for oral or external applications.

1. Dissolution or Dilution Method

Uses herbal powder or flow extract with specified ethanol concentration. Required equipment includes a double jacket extraction tank, duplex filter/centrifuge, and storage tank.

2. Impregnation Method

Medicinal materials are soaked for 3-5 days. The process involves an extraction tank with an agitator mixer to accelerate the leaching of effective ingredients.

3. Percolation (Diacolation) Method

Solvent is percolated through the material until the outflow reaches the specified amount. It utilizes a single layer extraction tank with a pneumatic discharge system.

⚙

Technical Parameters

Specification model	TQD-1000	TQD-2000	TQD-3000	TQD-6000	TQD-10000
Volume (L)	1200	2300	3200	6300	11000
Design Pressure (Mpa)	0.09	0.09	0.09	0.09	0.09
Sandwich Pressure (Mpa)	0.3	0.3	0.3	0.3	0.3
Heating Area (m2)	3	4.7	6	7.5	12
Stirring Speed (r/min)	25~40	25~40	25~40	25~40	25~40

📷

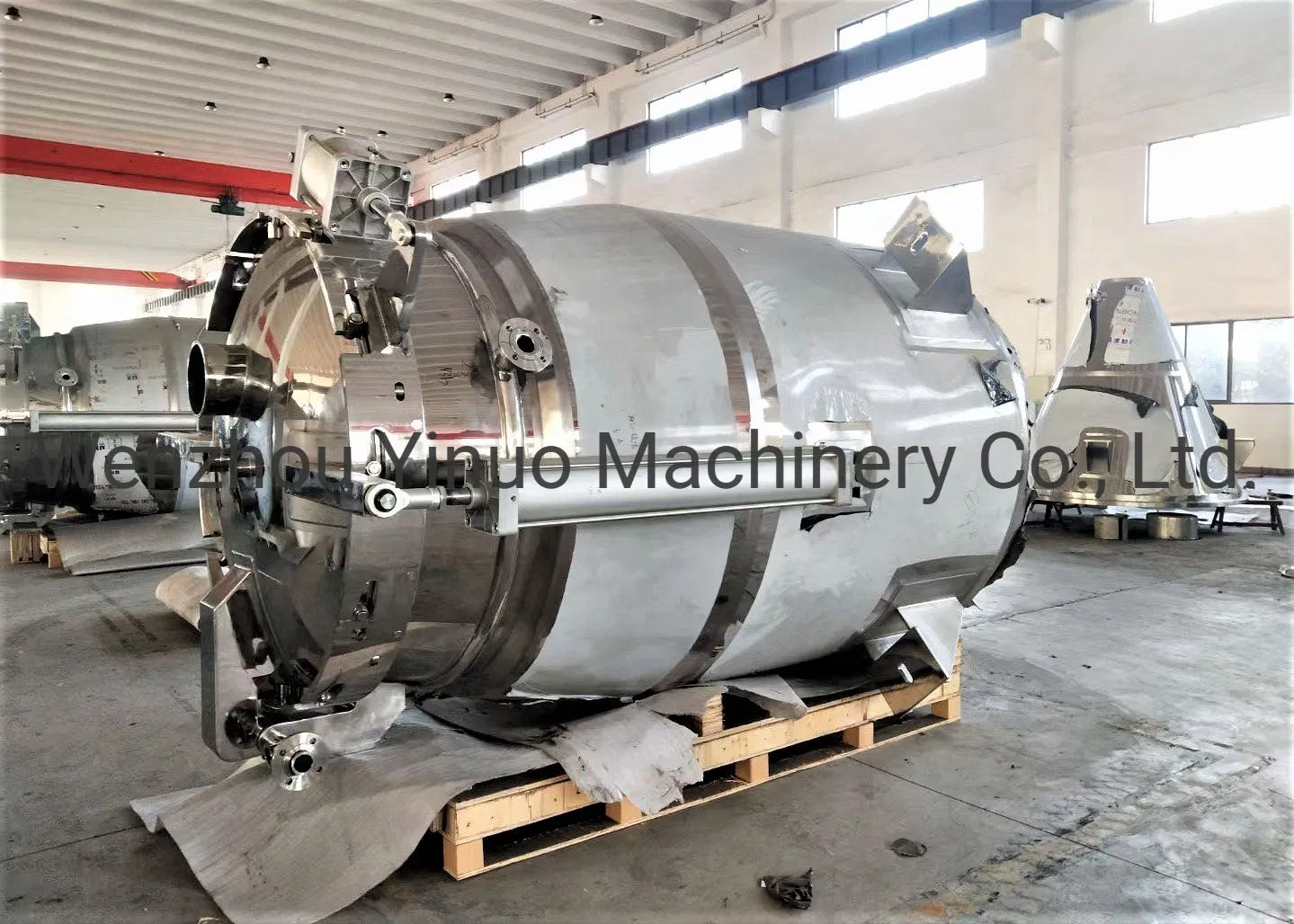

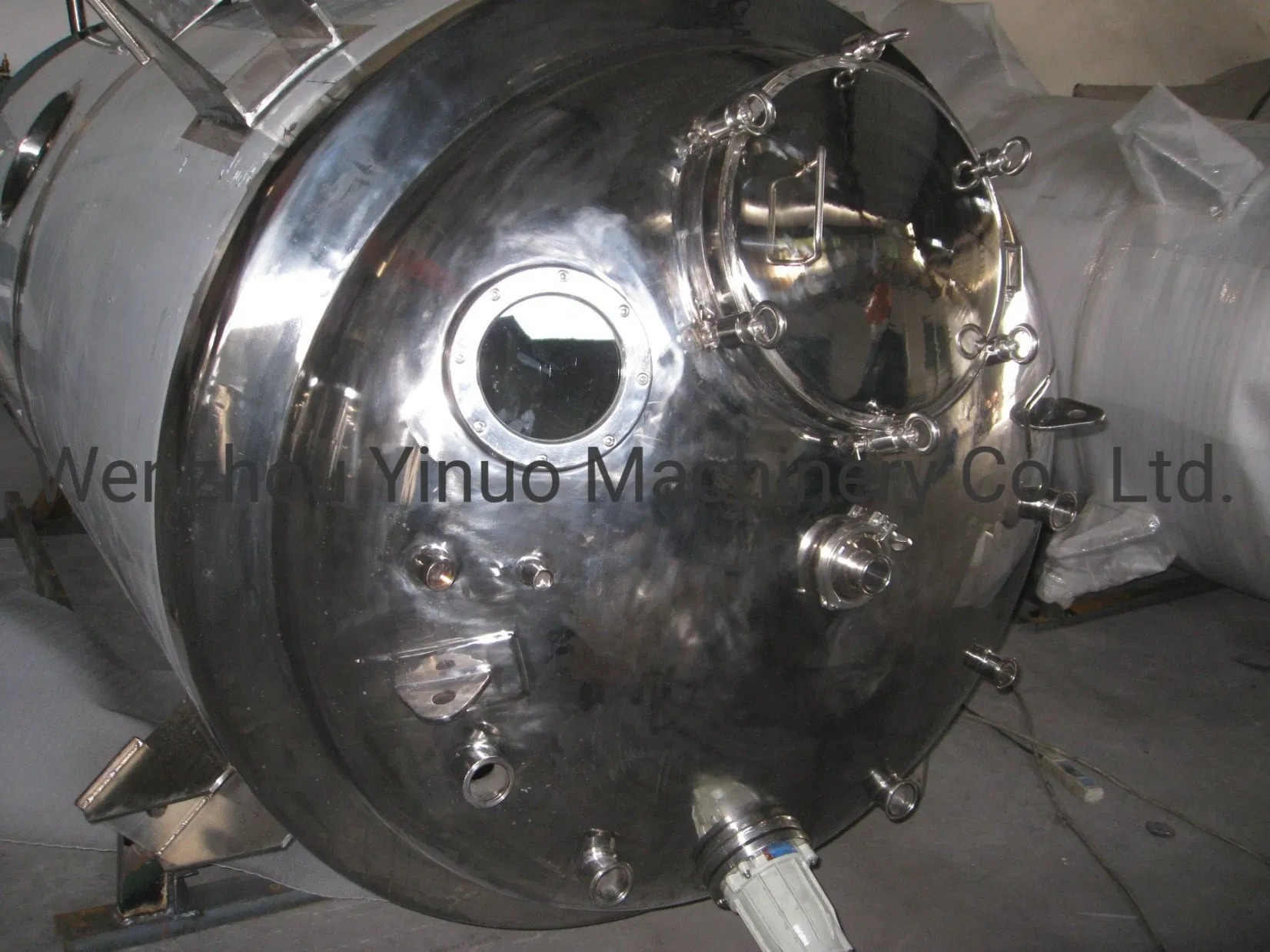

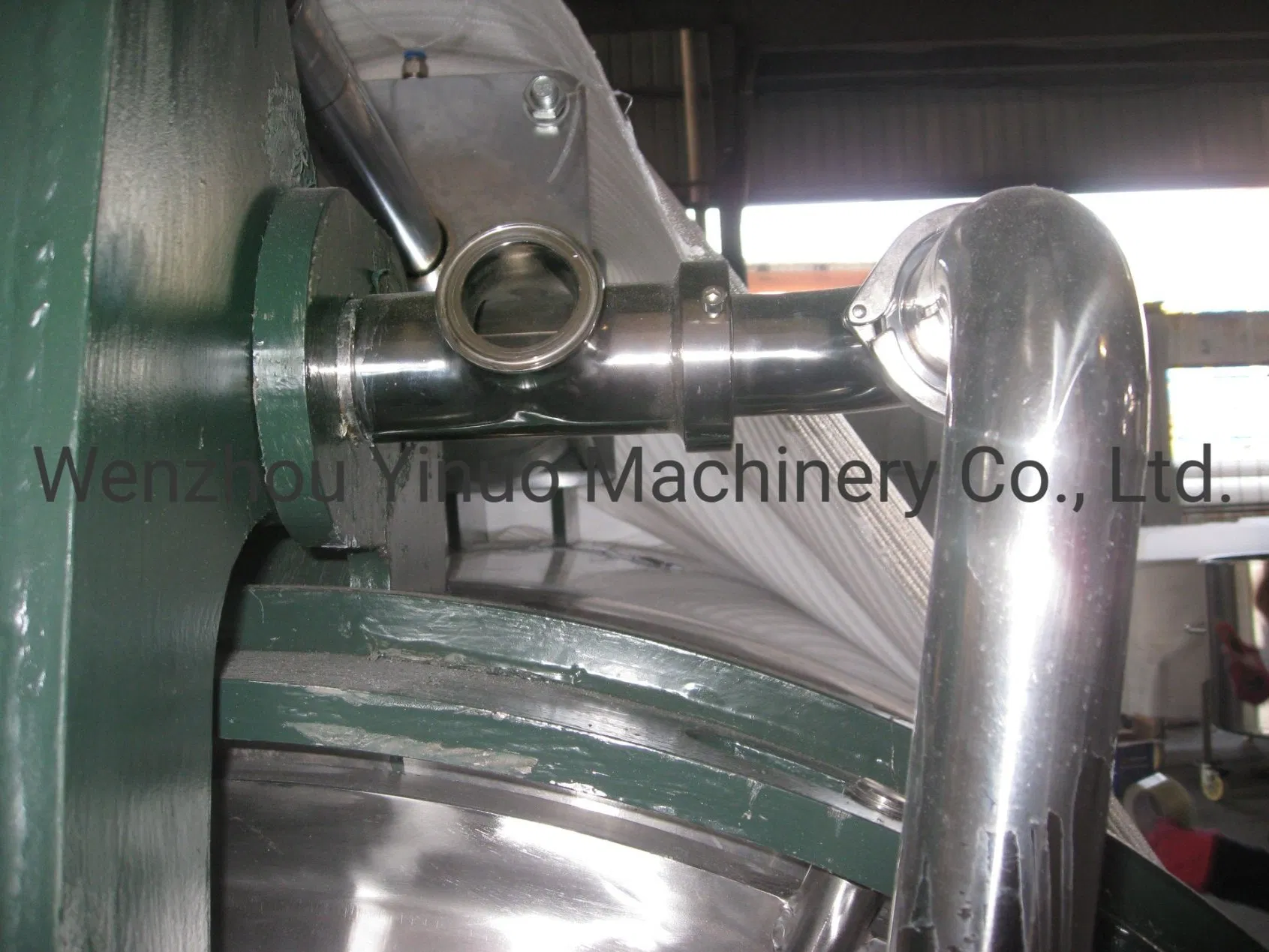

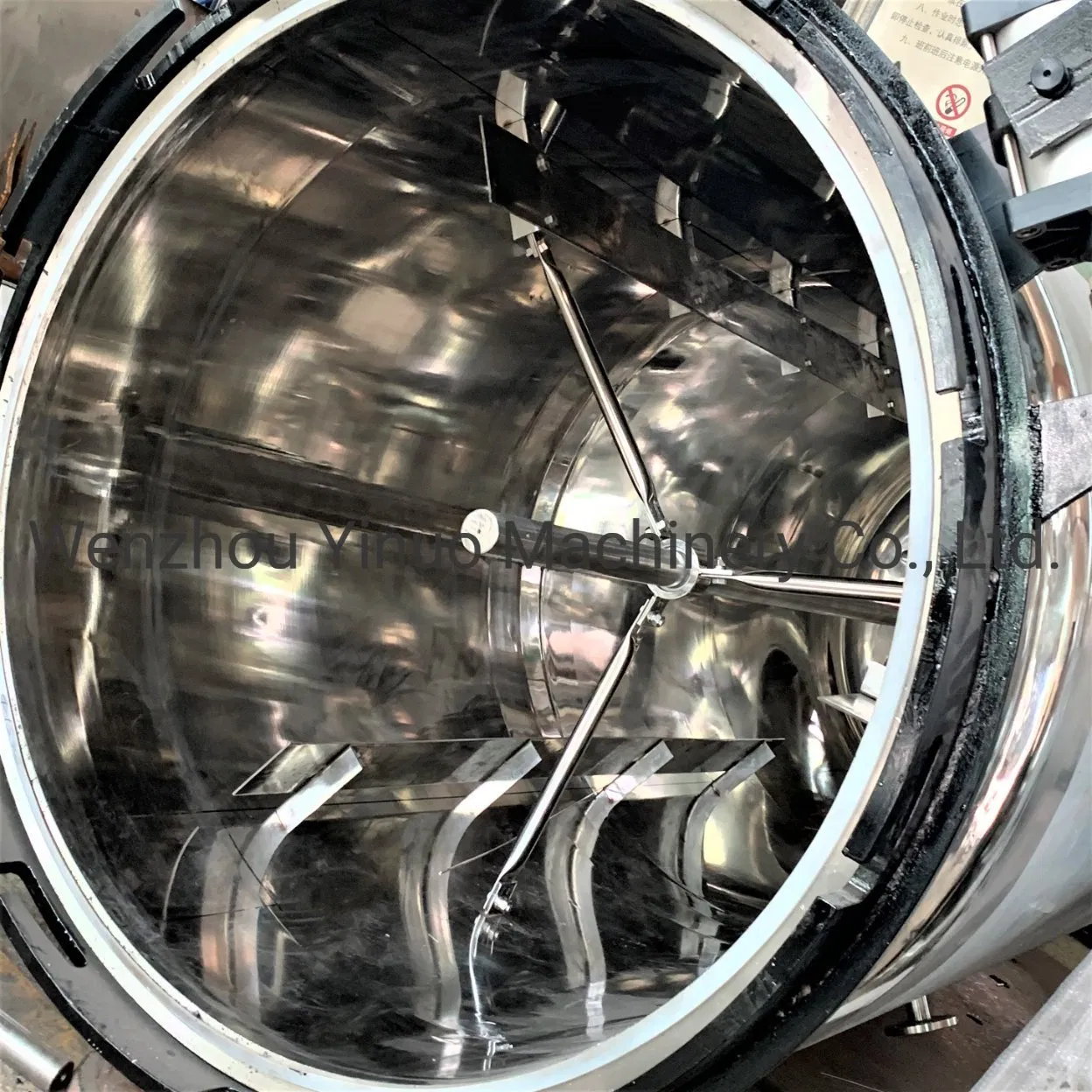

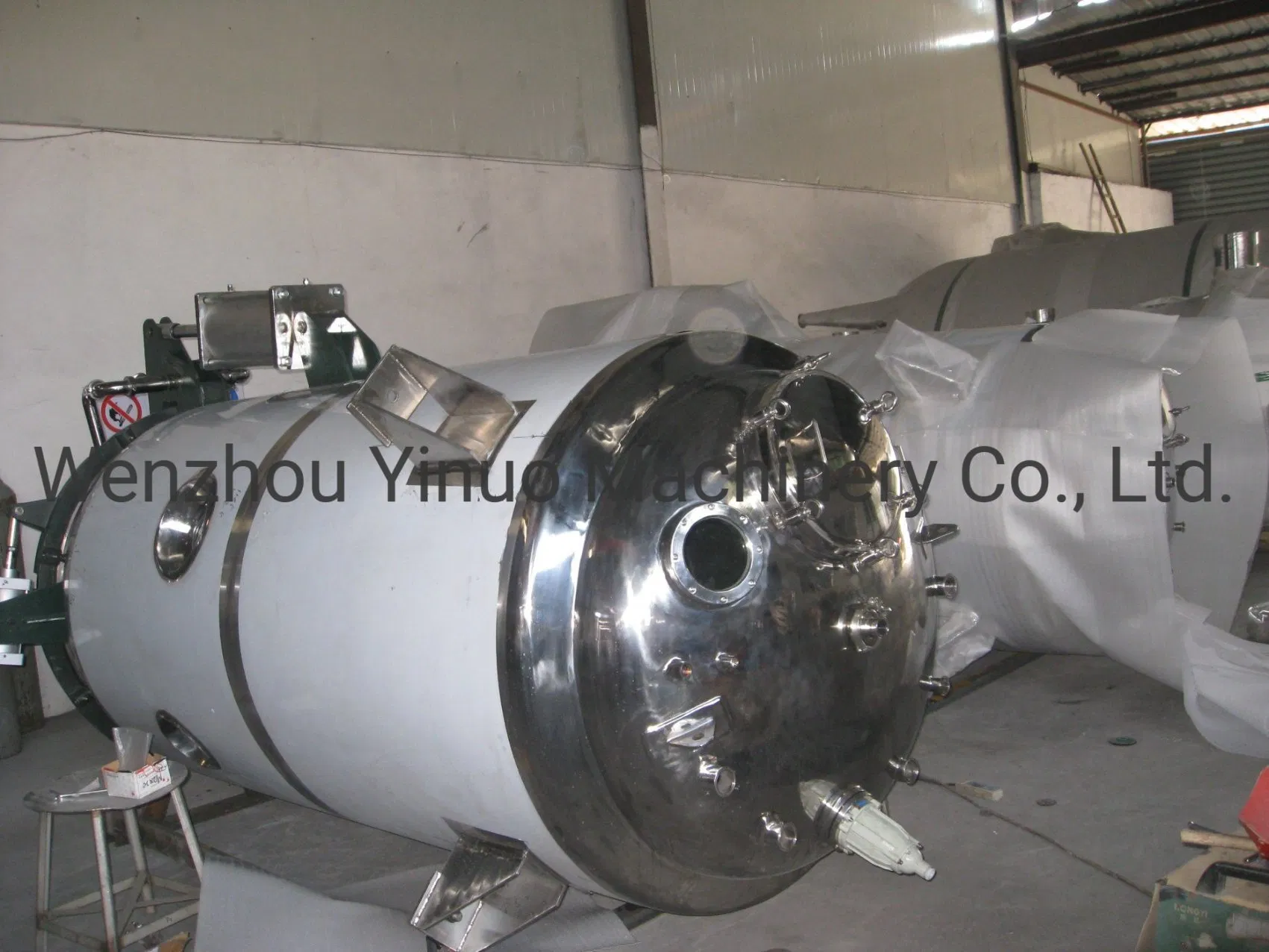

Product Showcase

✔

Professional Service

Our expert team supports clients 7*24 hours through a structured workflow:

◈ Consultation: Inquiry and URS documents analysis.
◈ Design: Confirmation of DQ documents and PID drawings.

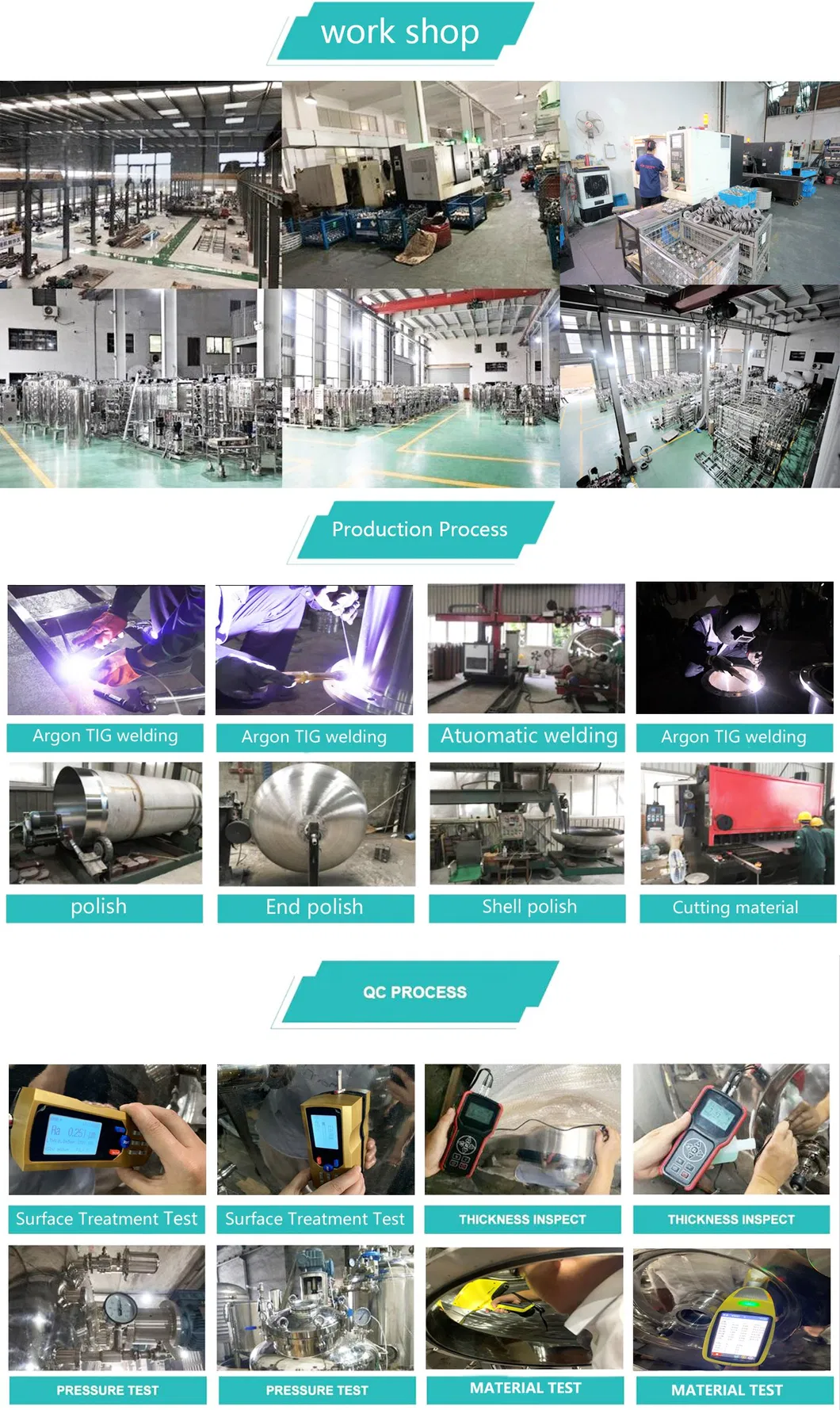

◈ Manufacturing: High-precision engineering and quality inspection.
◈ FAT: Factory Acceptance Testing and product inspection.
◈ After-sales: OQ, PQ, and SAT document support.

Frequently Asked Questions

How is the equipment quality controlled?

We have a qualified expert team that inspects every production process. All machines are thoroughly tested in our plant before shipment.

What is the warranty period for the machinery?

We provide a 1-year warranty for machine operation and offer lifelong service support for all our equipment.

Do you provide overseas installation services?

Yes, if required, we can send our engineers to your facility to assist with installation, commissioning, and staff training.

How can I track the production status of my order?

We provide weekly updates with photos or videos during the manufacturing process. Once finished, detailed media will be sent for your final approval before shipment.

What services are offered before placing an order?

We provide customized design drawings based on your company's URS. Once the drawings are approved, we provide a detailed quotation and technical documentation.

Which payment methods are accepted?

We accept various payment terms including T/T, L/C, D/P, and Western Union to suit different international requirements.
