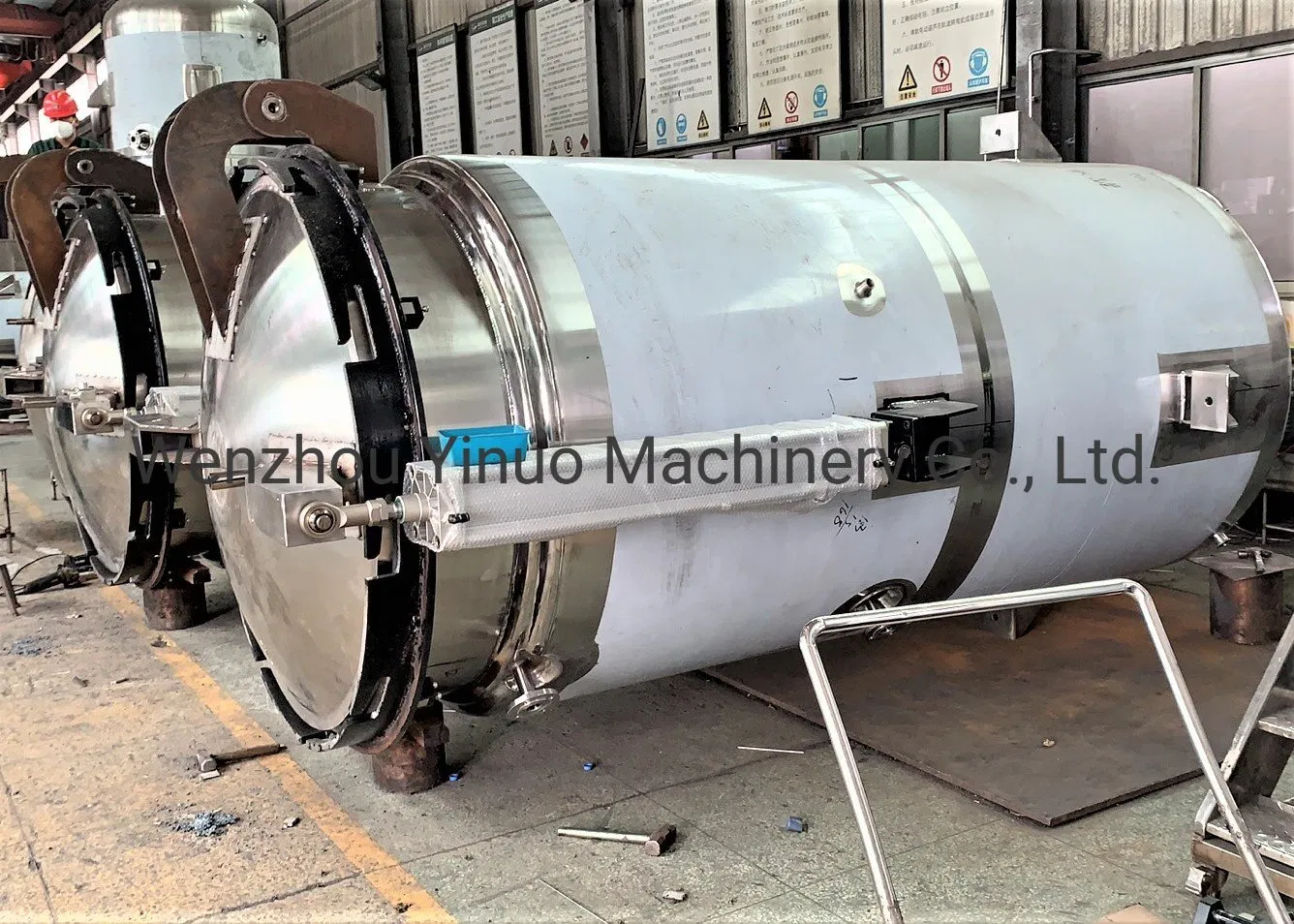

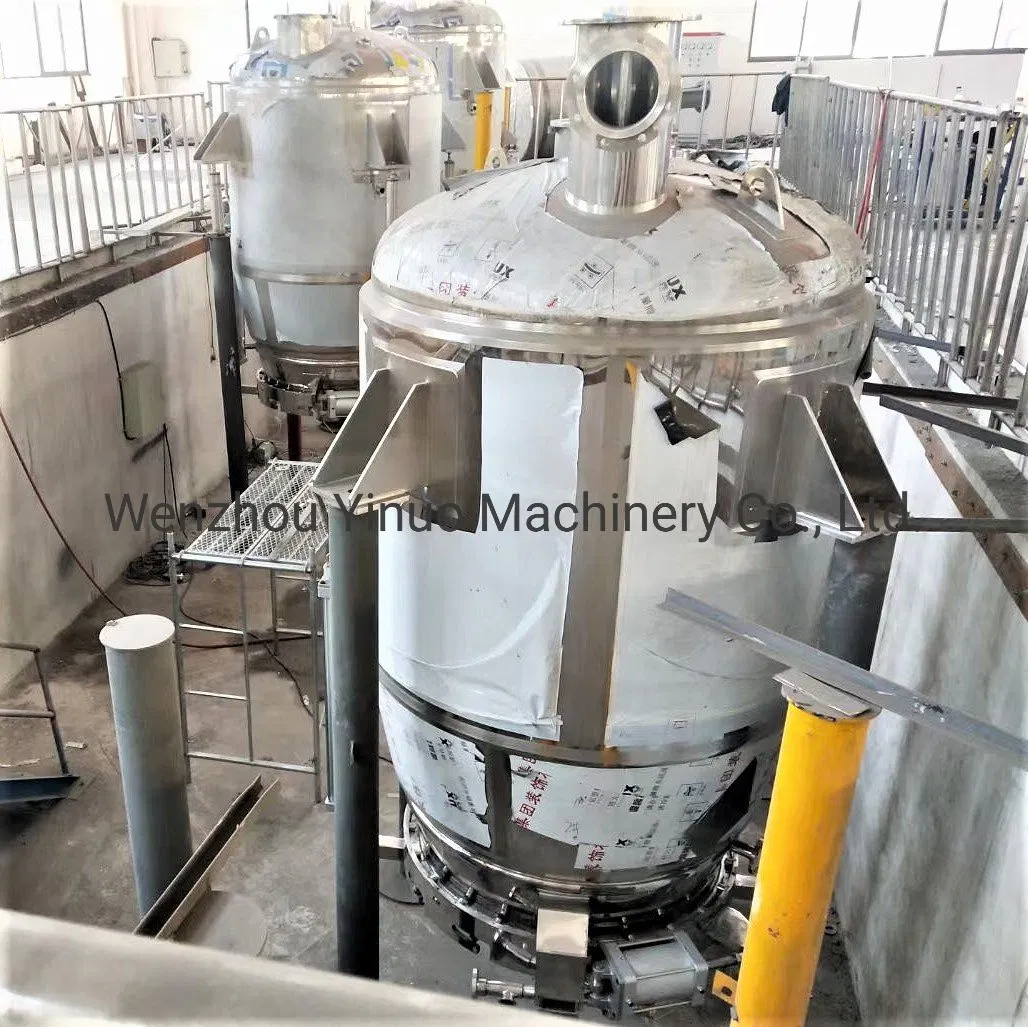

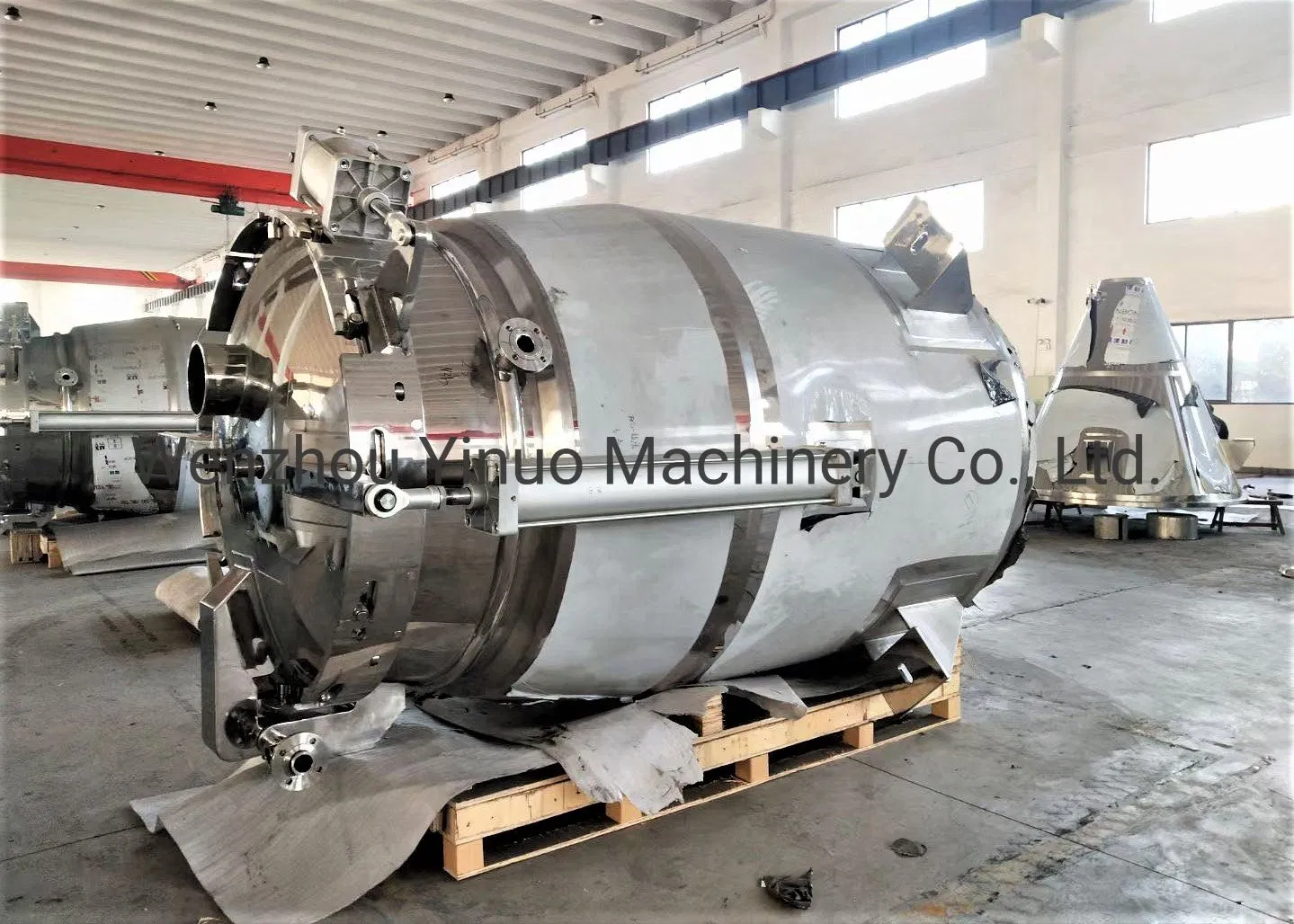

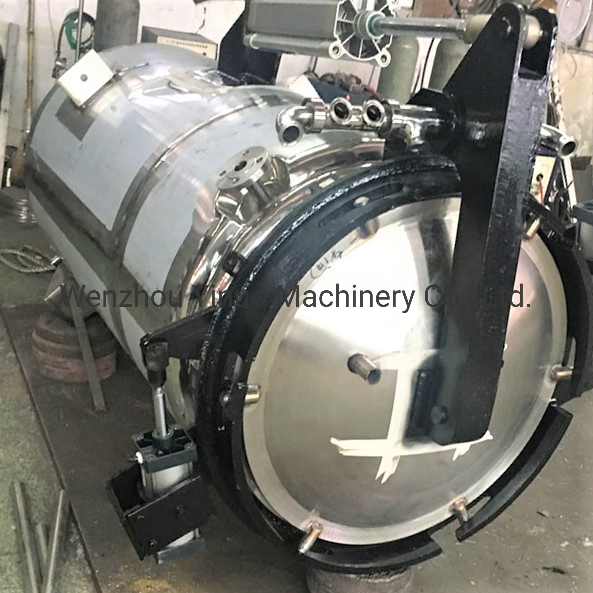

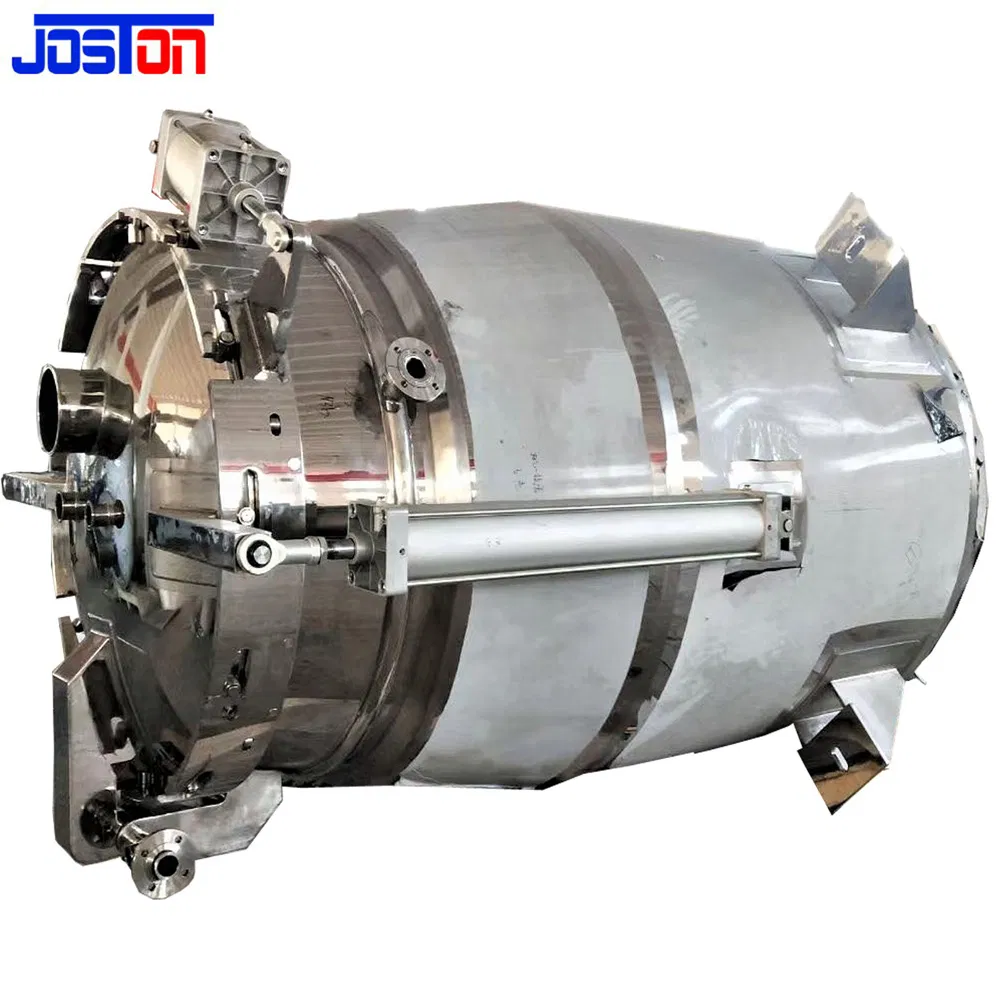

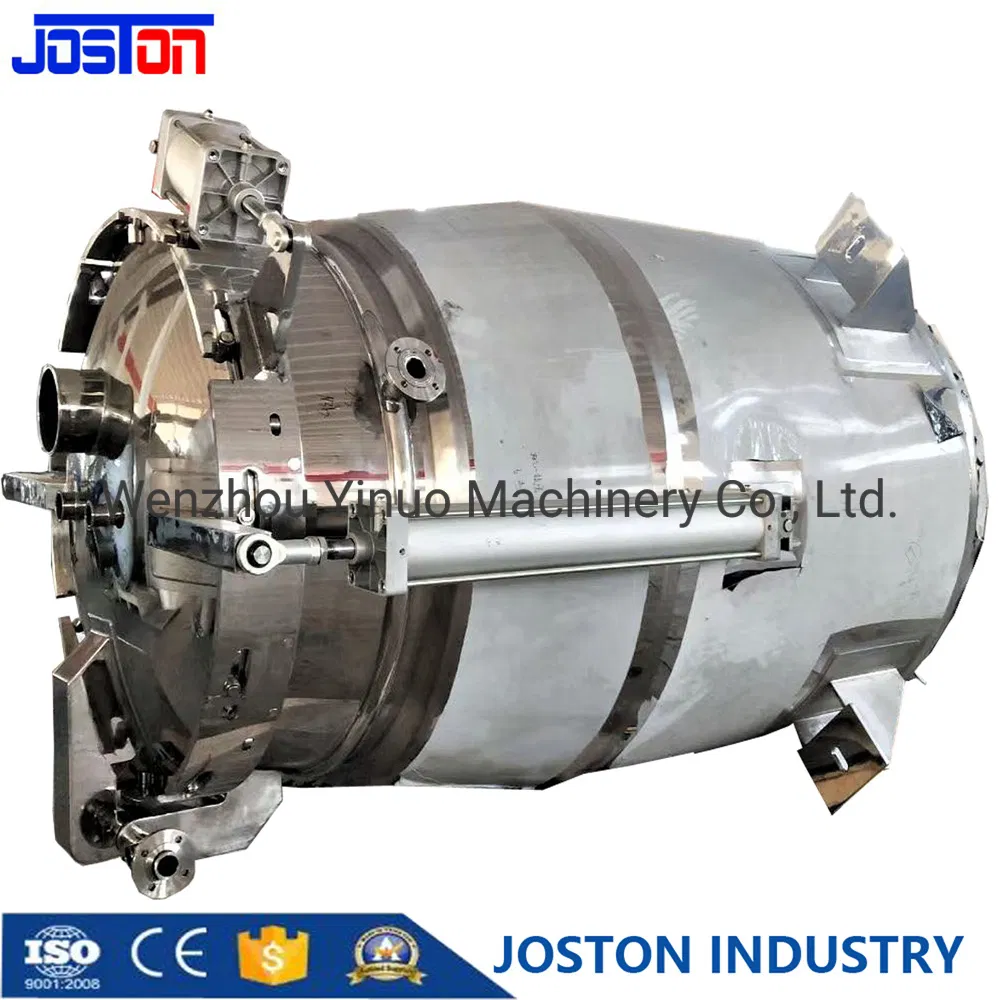

High Quality SS316L Diacolation Tank Food Additive Tincture Extraction Machine is professional equipment designed to extract active ingredients from herbal raw materials using solvents such as ethanol, methanol, or acetone.
| Specification model | TQD-1000 | TQD2000 | TQD3000 | TQD6000 | TQD8000 | TQD10000 |
|---|---|---|---|---|---|---|
| Volume (L) | 1200 | 2300 | 3200 | 6300 | 8500 | 11000 |
| Design pressure in tank (Mpa) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 |
| Sandwich design pressure(Mpa) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Compressed air pressure(Mpa) | 0.6~0.7 | |||||
| Heating area (m²) | 3 | 4.7 | 6 | 7.5 | 9.5 | 12 |
| Condensation area (m²) | 4 | 4 | 5 | 5 | 8 | 10 |
| Filter area (m²) | 3 | 3 | 3 | 5 | 5 | 6 |
| Slag gate diameter (mm) | 800 | 800 | 1000 | 1000 | 1000 | 1000 |
| Stirring speed (r/min) | 25~40 | |||||
Includes charging raw materials and solvents into the extraction tank. The jacketed system facilitates faster dissolution through controlled heating. Key components include extraction tanks, duplex filters or centrifuges, transfer pumps, and storage tanks.
Involves soaking crushed medicinal materials in a solvent for 3-5 days. Effective ingredients are leached through agitation and standing periods, followed by filtration to obtain the pure tincture.
Solvent flows through the material until the outflow reaches the specified density or volume, ensuring high-efficiency extraction of active compounds.
Our expert team provides 24/7 technical support and a comprehensive project lifecycle:
