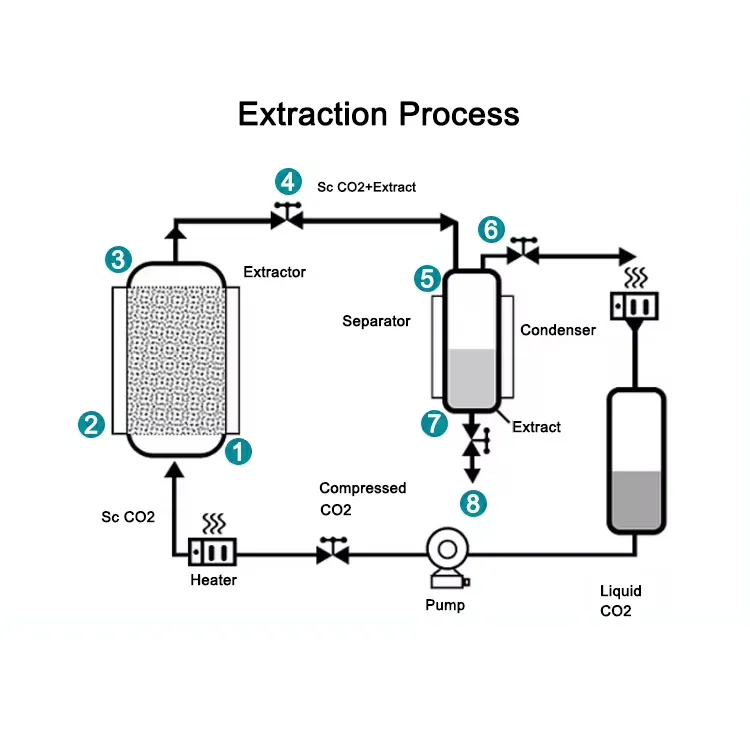

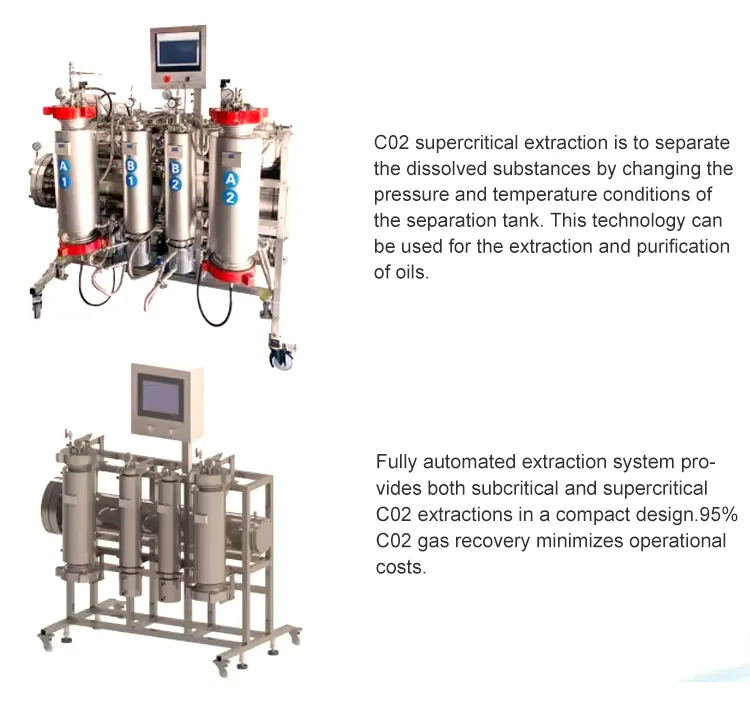

Supercritical CO2 extraction system is used under high pressure and suitable temperature suitable to extract valuable content from material (solid or liquid), it is to change the pressure and temperature conditions of the separator tanks to let the dissolved substances separated out to achieve the purpose of separation. This technology could be used to make extraction and purification on biological products, foodstuff and medicines, etc.
| S/N | Model | Specification | Max Working Pressure | Capacity |
|---|---|---|---|---|
| 1 | 1L | 1 Extractor 2 Separators | 450bar | 3lbs-10lbs |
| 2 | 2L | 1 Extractor 2 Separators | 450bar | 6lbs-13lbs |
| 3 | 5L | 1 Extractor 2 Separators | 450bar | 18lbs-30lbs |
| 4 | 5L*2 | 2 Extractors 2 Separators | 450bar | 33lbs-55lbs |
| 5 | 10L*2 | 2 Extractor 2 Separators | 350bar | 66lbs-110lbs |
| 6 | 15L*2 | 2 Extractor 2 Separators | 350bar | 90lbs-160lbs |
| 7 | 24L*2 | 2 Extractor 2 Separators | 350bar | 120lbs-220lbs |
| 8 | 25L*2 | 2 Extractor 2 Separators | 350bar | 125lbs-225lbs |
| 9 | 24L*4 | 4 Extractor 2 Separators | 350bar | 240lbs-440lbs |
| 10 | 25L*4 | 4 Extractor 2 Separators | 350bar | 245lbs-445lbs |
| 11 | 50L*2 | 2 Extractor 2 Separators | 350bar | 400lbs-500lbs |
| 12 | 50L*4 | 4 Extractor 2 Separators | 320bar | 800lbs-1000lbs |
| 13 | 50L*6 | 6 Extractor 2 Separators | 320bar | 1200lbs-1600lbs |
| 14 | 150L*2 | 2 Extractor 2 Separators | 320bar | 1200lbs-1700lbs |
| 15 | 150L*4 | 4 Extractor 2 Separators | 320bar | 2400lbs-3400lbs |
| 16 | 100L*2 | 2 Extractor 2 Separators | 320bar | 800lbs-1200lbs |
| 17 | 200L*2 | 2 Extractor 2 Separators | 320bar | 1600lbs-2400lbs |
| 18 | 200L*4 | 4 Extractor 2 Separators | 320bar | 3600lbs-4800lbs |
| 18 | 700L*3 | 3 Extractor 2 Separators | 320bar | 8800lbs-12000lbs |
| 19 | 1000L*3 | 3 Extractor 2 Separators | 320bar | 10000lbs-18000lbs |
The company is a collection of product design, development, manufacturing, engineering installation, and after-sales service as one of the comprehensive enterprises.
The products are designed and manufactured in strict accordance with the relevant national equipment standards. Our products are involved in pharmaceutical engineering, dairy equipment, beverage equipment, biological engineering, chemical engineering, essential oil refining equipment and experimental equipment manufacturing and whole plant installation engineering.
With a rich technical service team, we provide customers with process design, plant layout, product formulation, technical consulting and turnkey engineering services for new construction or expansion projects. We have rapidly grown into a leading enterprise with domestic and foreign markets, advanced production, testing equipment, and excellent service.
