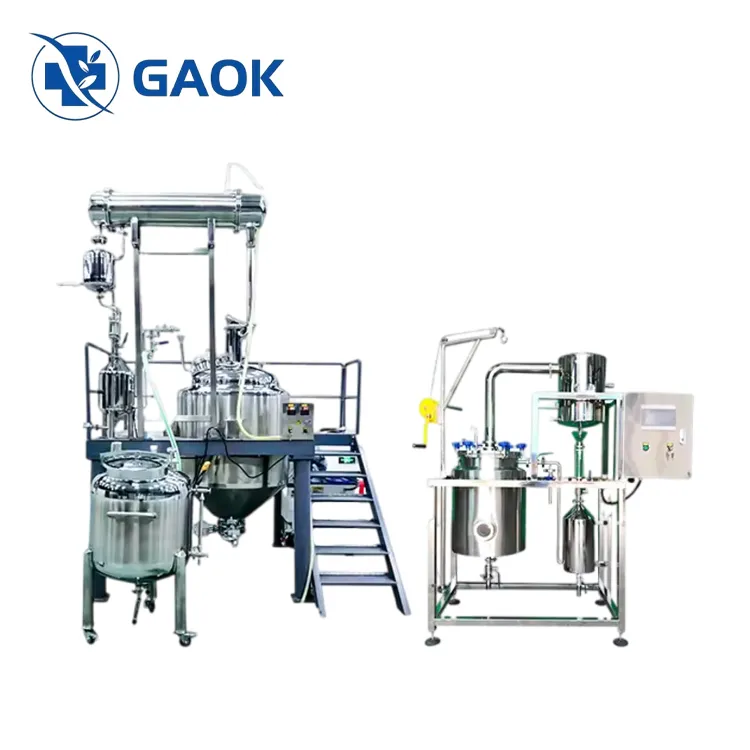

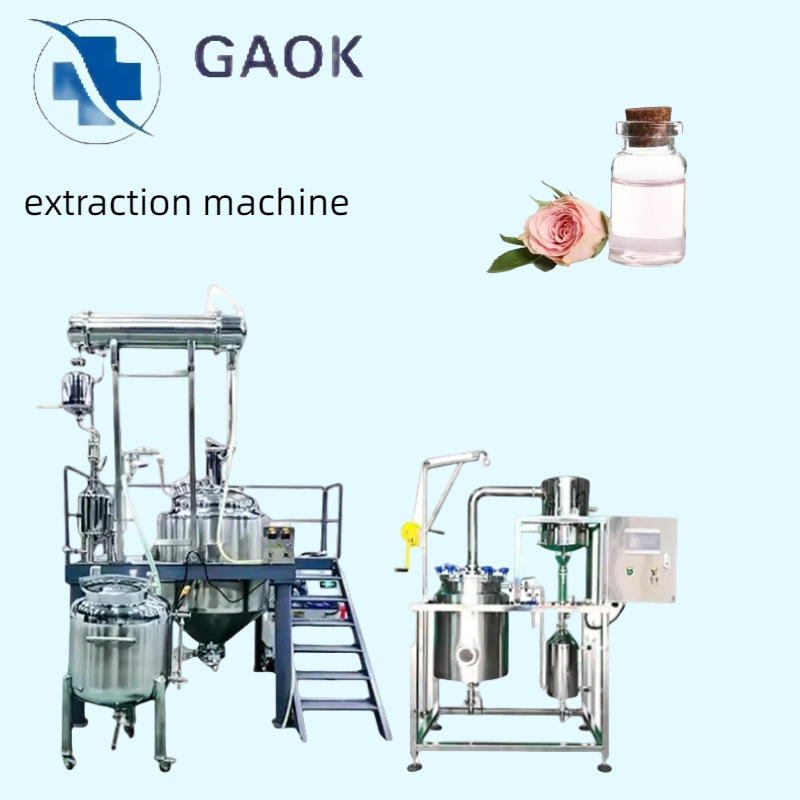

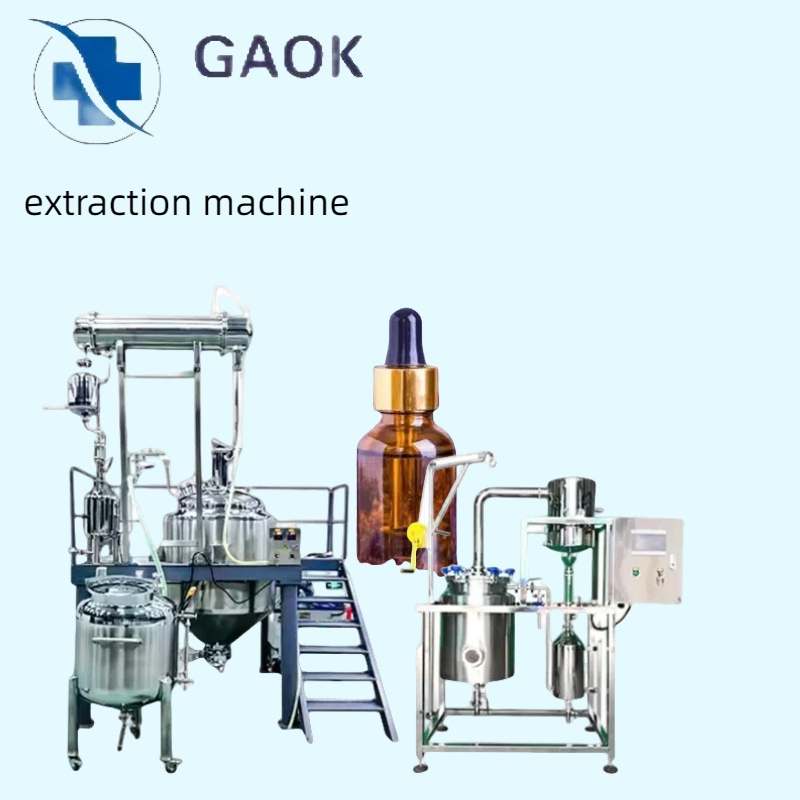

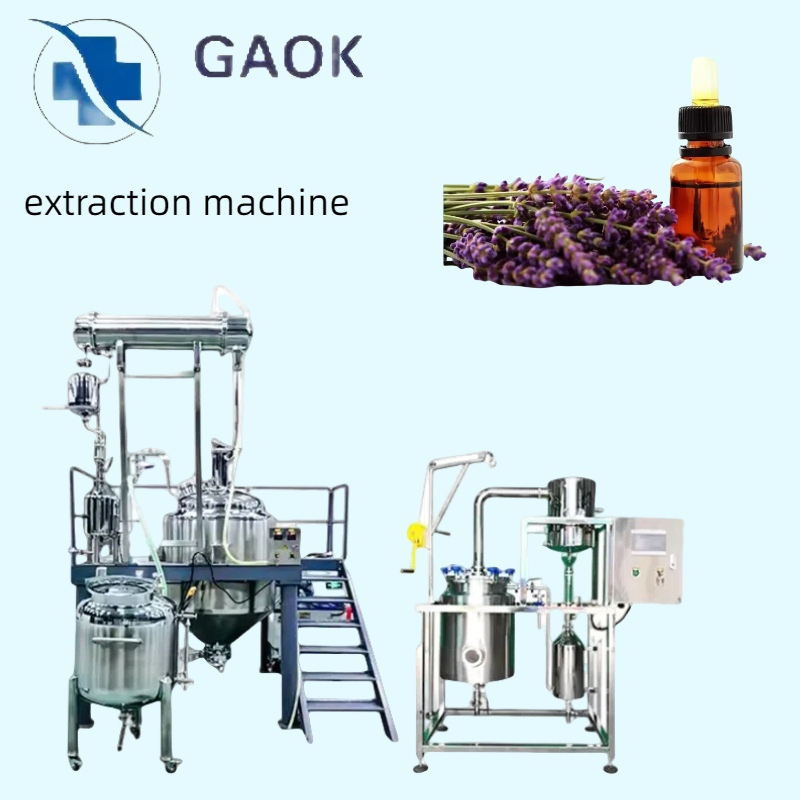

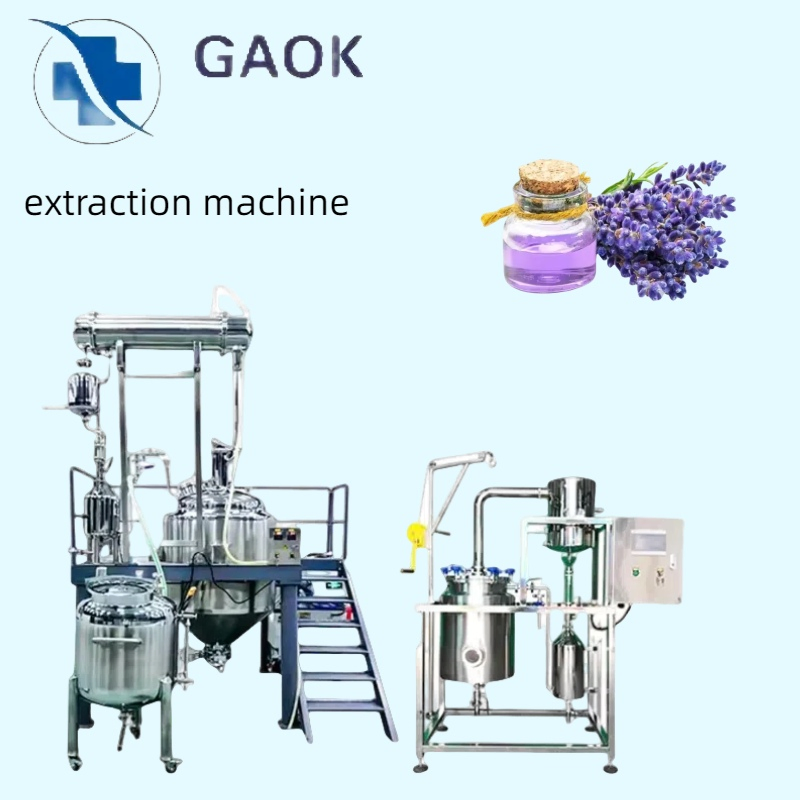

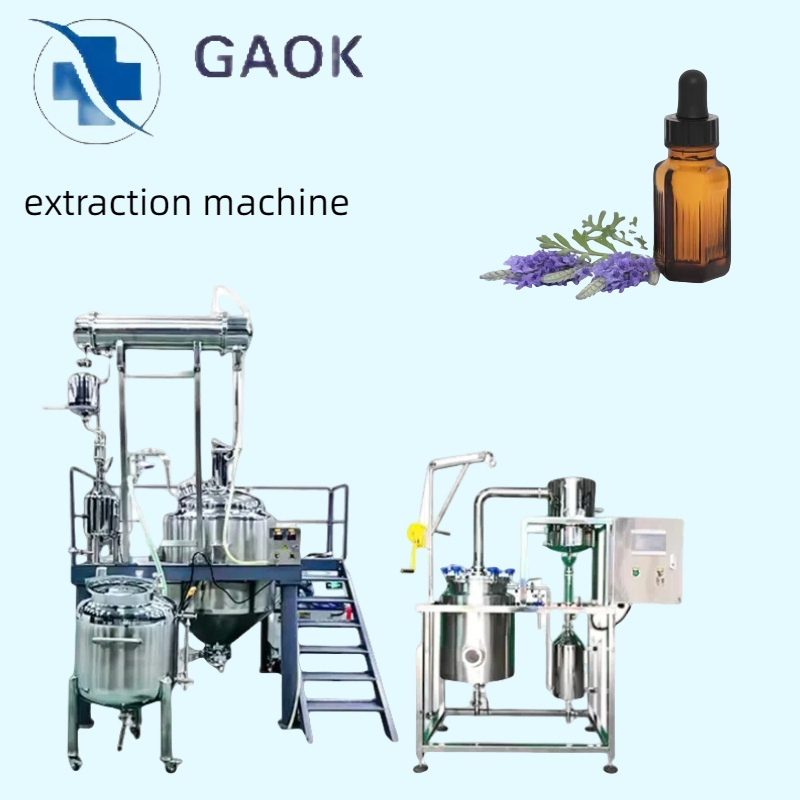

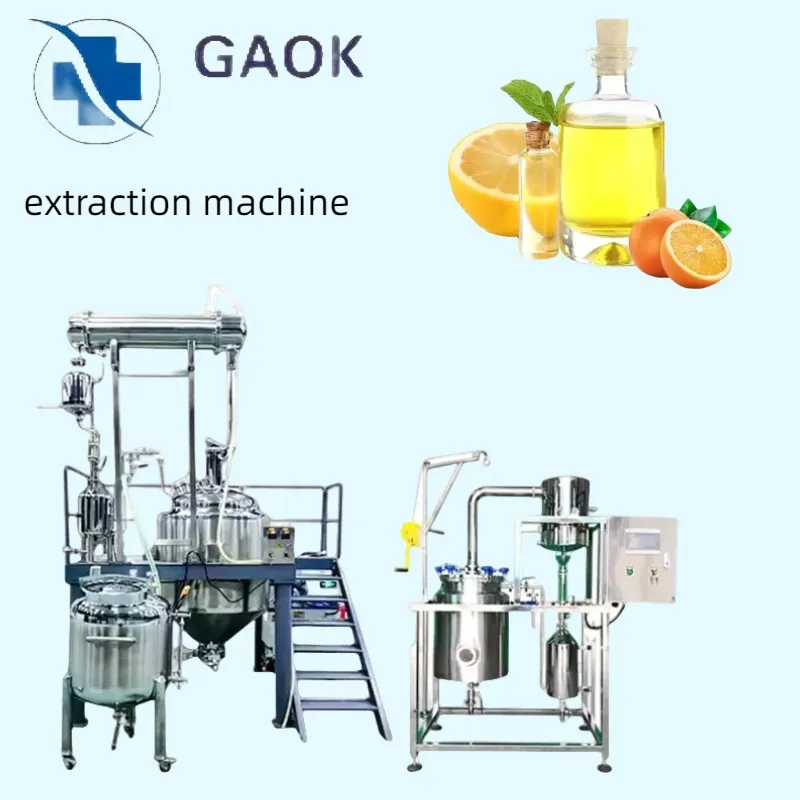

50-3000L Factory Custom Plant Herbal Essential Oil Distiller Steam Extraction Machine Plant Oil Extractor
Small plant essential oil extraction equipment is suitable for the co-water or water-proof distillation extraction process of conventional oils and aromatic oils in plant branches, flowers, grasses and animal materials with higher oil content. The structure of the extraction equipment is exquisite and the operation is very simple.
🚀 Core Advantages:
| Model | GK-50L | GK-100L | GK-200L | GK-300L |
| Capacity(L) | 50L | 100L | 200L | 300L |
| Voltage(V) | 380V, 50HZ (3-phase 220V/480V optional) | |||
| Power(Kw) | 7.5kw | 12kw | 16kw | 24kw |
| Jacket Pressure | 0.3mpa | |||
| Tank Pressure | 0.09mpa | |||
| Extraction Temp | ≤100 ºC | |||
| Heating area | 0.72m2 | 0.98m2 | 1.38m2 | 1.65m2 |
Extracting effective components from traditional herbs, concentration and purification of ingredients, separating fatty mixtures.
Extracting essence, flavors, animal/plant fats, food colorants, and removing odors or organic solvents.
Purification and extraction of high-quality essences and aromatic flavors.
Separating hydrocarbons, recovery of reacted materials, and removing harmful metal ions from soil or waste water.
Make Your Research More Accurate & Efficient
We design and manufacture extraction production lines for users in need of a simple device for small amounts of extract, as well as more complex equipment for industrial use. Our offer includes preprocess (dryer/grinder), coating machines, and process systems using volatile hydrocarbons, alcohol, or CO2 (supercritical extraction).
